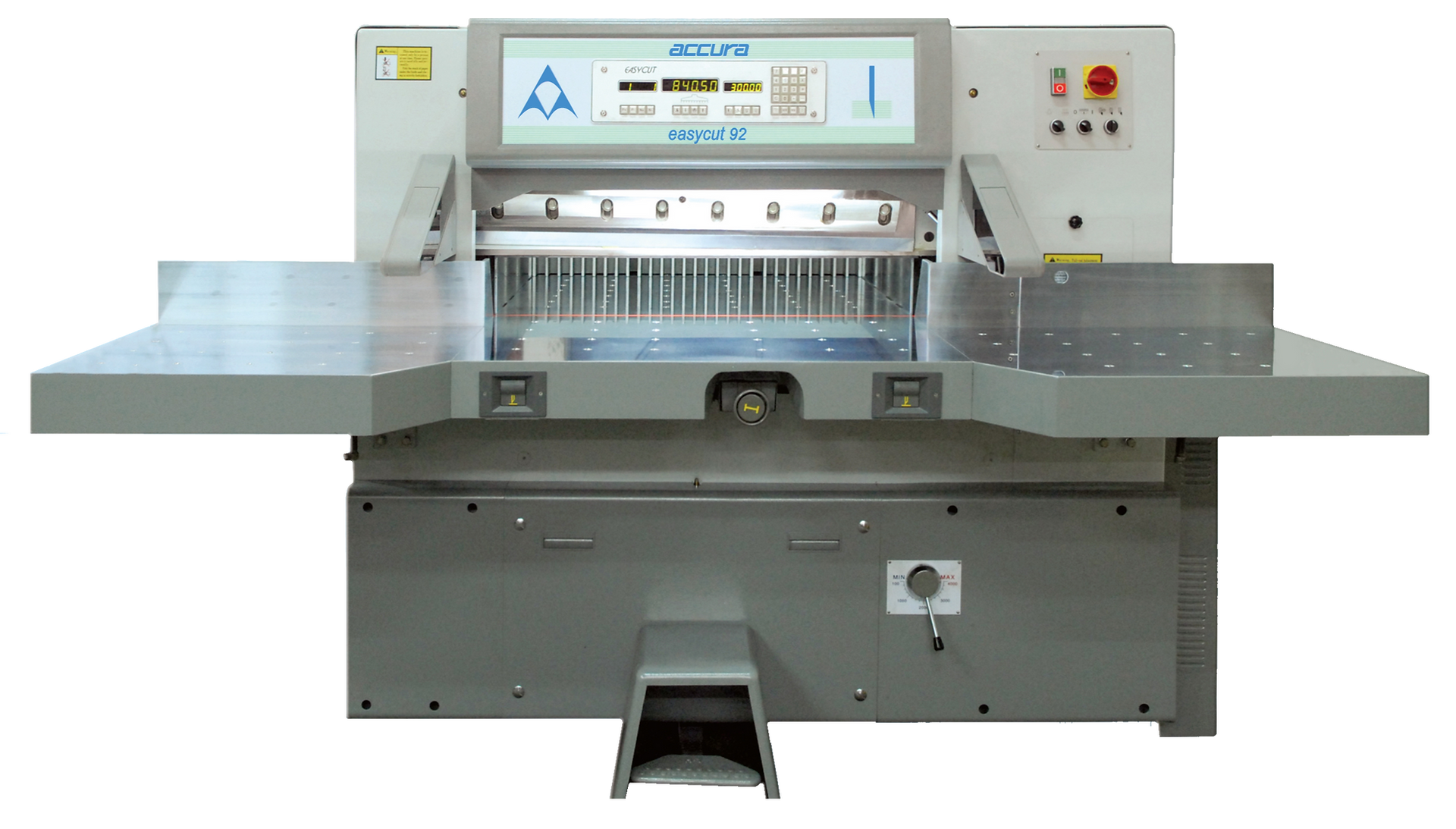

Accura Easycut Guillotine Machine

The Accura Easycut Guillotine is a Hybrid Cutter offering end-users the efficiency of full digital programming and the convenient maintenance of user-serviceable conventional electrical components.

Control & Instrumentation Cabinet with Conventional Electrical Components

INNOVATIVE FEATURES



Slot-less design of the rear table guarantees mechanical integrity and structural rigidity while ensuring jam-free operation and eliminating the inconvenience of replacing worn-out conveyor belts.

          Non-corrosive hard-chrome-plated table with air-cushion eases the handling of heavy reams of paper and reduces operator fatigue

Non-corrosive  Hard-chrome-Plated Slot-Less Rear Table with                     Bilaterally-Supported Heavy-Duty Back Gauge

 Easy-to Clean, Non-corrosive Hard-Chrome-Plated Side Plates, Slot-less Rear Table with Bilaterally-supported Heavy-Duty Back Gauge

Air Pump of Pressurized Air Chambers providing Consistent Air Pressure to all Air Nozzles of the Air Tables

Pressurized Air Chambers providing Consistent Air Pressure to all Air Nozzles of Air Tables



Bilaterally-supported back gauge suspended on a Double Linear Bearing Guide Rail system assures parallelism, squareness, accuracy and durability.

 Double Linear Bearing on the Left Side Undercarriage of the Back Gauge with Lubricant Reservoir

Double Linear Bearing on the Right Side Undercarriage of the Back Gauge with Lubricant Reservoir

Backgauge Lead Screw with Re-Circulating Ball Bearing System

SAFETY FEATURES

Double Hydraulic System eliminates the use of the electro-magnetic clutch of conventional guillotines to activate knife operation for safety reliability.

Mechanical overload protection device safeguards the guillotine knife and knife drive mechanism from damage due to improper setting of knife height and accidental cutting of tough materials.



AUTOMATION FEATURES

The Accura Easycut Guillotine Programming Device uses advanced computer hardware and sophisticated software to automate the material cutting process. It offers greater accuracy, improved reliability and increased productivity at a fraction of the budget of a European or Japanese guillotine of the same specifications.


· Stores 15,000+ cut positions entered into 198 programs, up to

    80 steps per program.
·  Allows reviewing and modifying of individual steps without re-entering the

    whole program.
· Shifts between Imperial and Metric Systems with the push of a button.
· Enters fractional parts of an inch such as 1/4, 3/8, 5/16, 7/32, 9/64....
· Features step & repeat sequence suitable for label printers.
· Divides a sheet into equal sizes without manual calculations suitable for paper

    converters.
· Includes a calculator for basic mathematical computations of addition,

    subtraction, multiplication and division.
· Displays in LED or LCD according to customer budget and preference. For

    units with a Dual Display in both LED and LCD, the system uses an economical

    user-replaceable Plug-n-Play Office PC LCD available for purchase from most

    PC retailers at a fraction of the cost of expensive Touch Screen LCD used on

    most popular guillotine

Accura Easycut 92 Technical Specifications:

Maximum Cutting Width

Maximum Cutting Height

Maximum Cutting Length (Back Gauge)

Maximum Back Gauge Speed

Minimum Cut

Clamping Pressure Range (Hydraulic Power)

Cuts per Program

Knife Speed

Main Drive Power Rating

Electric Power Requirement

Net Weight

Overall Dimensions





92 cm / 36 in.

12 cm / 5 in.

92 cm / 36 in.

20 cm/sec.,  8 in./sec

25 mm

2 - 30 KN

80 Steps/Program

40 cycles per min

3 KW, 3 Phase, 50/60 Hz

220 / 380 / 415 / 440 Volts

2300 KG

230 X 212 X 155 cm

Accura Easycut 115 Technical Specifications:

Maximum Cutting Width

Maximum Cutting Height

Maximum Cutting Length (Back Gauge)

Maximum Back Gauge Speed

Minimum Cut

Clamping Pressure Range (Hydraulic Power)

Cuts per Program

Knife Speed

Main Drive Power Rating

Electric Power Requirement

Net Weight

Overall Dimensions





115 cm / 45 in.

16.5 cm / 6.5 in.

115 cm / 45 in.

25 cm/sec.,  10 in./sec

25 mm

2 - 40 KN

80 Steps/Program

40 cycles per min

3 KW, 3 Phase, 50/60 Hz

220 / 380 / 415 / 440 Volts

4000 KG

256 X 259 X 165 cm

Accura Easycut 137 Technical Specifications:

Maximum Cutting Width

Maximum Cutting Height

Maximum Cutting Length (Back Gauge)

Maximum Back Gauge Speed

Minimum Cut

Clamping Pressure Range (Hydraulic Power)

Cuts per Program

Knife Speed

Main Drive Power Rating

Electric Power Requirement

Net Weight

Overall Dimensions





137 cm / 54 in.

16.5 cm / 6.5 in.

137 cm / 54 in.

25 cm/sec.,  10 in./sec

25 mm

2 - 40 KN

80 Steps/Program

40 cycles per min

3 KW, 3 Phase, 50/60 Hz

220 / 380 / 415 / 440 Volts

4700 KG

286 X 280 X 165 cm
